USB 3.1 IP SuperSpeedPlus Device Controller IP

Overview


USB 3.1 IP works at SuperSpeedPlus mode at 10 Gbps, SuperSpeed mode at 5 Gbps and all USB 2.0 speed modes . Inno-Logic’s USB 3.1 IP can be seamlessly used for integration into SoCs for applications such as Media Storage.

Being the leading supplier of USB IP, Inno-logic provides SoC engineers and Designers with Silicon Proven USB IP Solution that address the performance, power, and area requirements of today’s enterprise/infrastructure, mobile, and consumer markets



Features

  • Compliant with:
    - USB3.1 Gen 2 specification
    - USB3.1 PIPE interface
    - Support 32/64 data bus width
    - AXI, AHB Bus standards
    - Supports 32/64/128 bit data bus
  • Supports all USB3.1 power down modes
  • Supports Control, Bulk, Isochronous and Interrupt transaction
  • Bulk endpoint support streaming
  • Device can be configurable up to 15 IN and 15 OUT functional endpoints
  • Configurable number of function endpoints
  • Dynamically configurable Endpoint FIFO for optimum usage
    of memory
  • Synchronous SRAM interface for FIFO
  • Fully integrated DMA controller

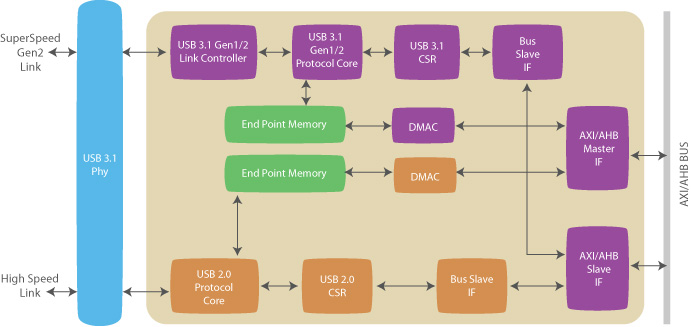

Block Diagram



-

-



Data Sheet

USB 3.1-Device-Datasheet

Deliverables

  • Synthesizable RTL developed in Verilog HDL
  • Constraints & scripts for synthesis
  • Test bench and Test cases developed in SystemVerilog
  • Sample Driver code
  • User Manual

Target Applications

  • Removable hard disks
  • Digital camera
  • Printer, scanner, etc.
  • Multimedia Applications
  • Mobile phones and Tablets
  • TV, DVD players, Set top Boxes
